1. Exceptional off-road climbing capability; operates stably on slopes up to 45°.
2. Four selectable cutting widths to suit various operational scenarios: 50cm / 80cm / 100cm / 120cm.
3. Rubber track undercarriage providing excellent traction on muddy, rugged, and hilly terrain.

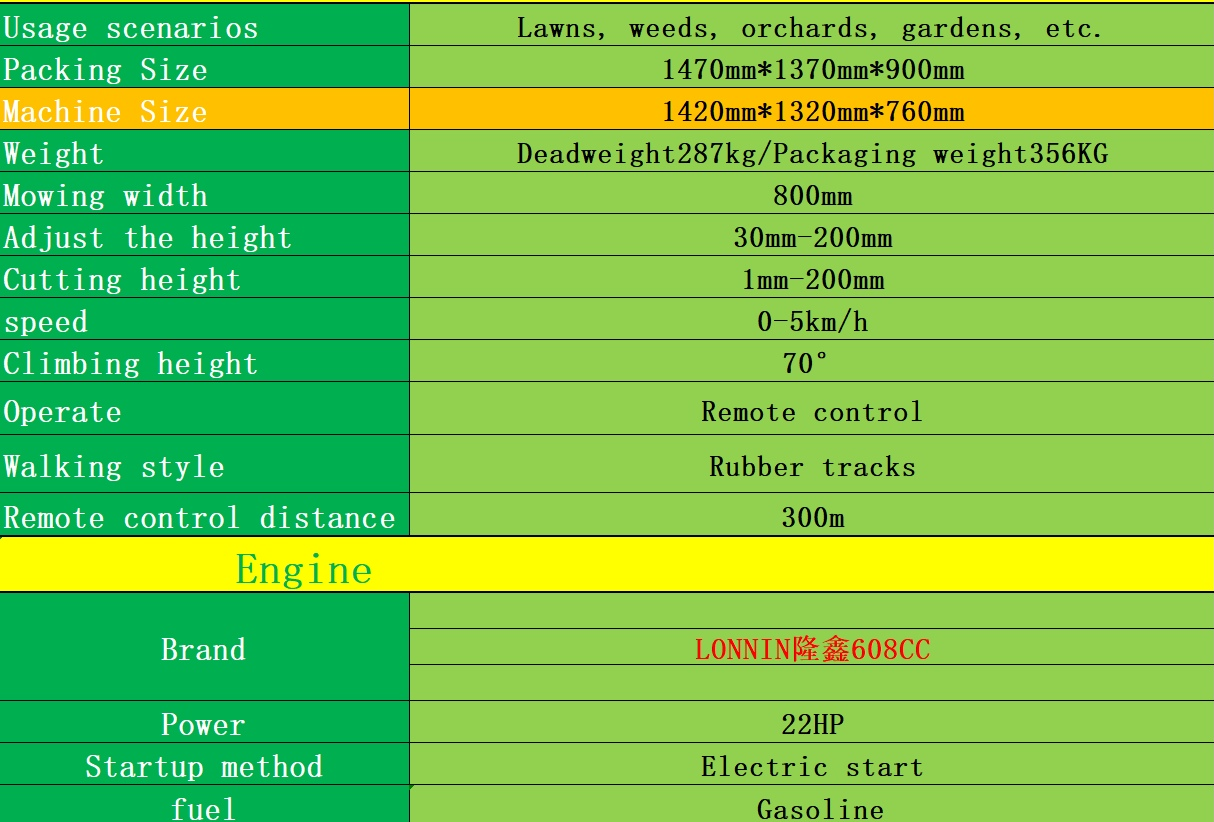

Detailed Technical Specifications
1. Cutting System
– Selectable cutting widths: 500mm (50cm) / 800mm (80cm) / 1000mm (1m) / 1200mm (1.2m)
– Cutting height range: 30mm – 120mm (adjustable)
– Cutting blades: High-strength dual rotary blades
– Cutting power: Vertical-shaft, air-cooled gasoline engine
– Mowing efficiency: Wide cutting deck significantly increases operational speed for large-scale landscaping maintenance
2. Off-Road Track Undercarriage
– Drive system: Full rubber track drive
– Maximum climbing angle: 45° steep slopes
– Terrain adaptability: Operates smoothly on hills, muddy ground, in orchards, on riverbanks, and on uneven terrain
– Track material: Wear-resistant, anti-slip rubber tracks; low ground pressure prevents sinking in wet, soft soil
– Steering method: Zero-turn capability; maneuvers flexibly through narrow rows and tight turns
3. Remote Control System
– Control range: Wireless remote operation up to 200 meters
– Control functions: Forward, backward, left/right steering, blade start/stop, height adjustment
– Safety design: Equipped with an emergency stop button; automatic power-off/shutdown upon signal loss
– Operational advantage: Operators stay away from dangerous steep slopes, eliminating the risk of slips or injuries
4. Power Configuration
– Engine type: Single-cylinder, four-stroke gasoline engine
– Cooling method: Air-cooled
– Fuel tank capacity: 3.5L
– – Continuous operation time: 3–6 hours per tank of fuel
– Emission characteristics: Low noise and low emissions; suitable for villas, parks, and municipal landscaping projects
5. Vehicle Structure
– Frame material: Thickened, integrated carbon steel frame; rust-resistant and deformation-resistant
– Overall ingress protection: IP54 dust and water resistance; suitable for all-weather outdoor operation

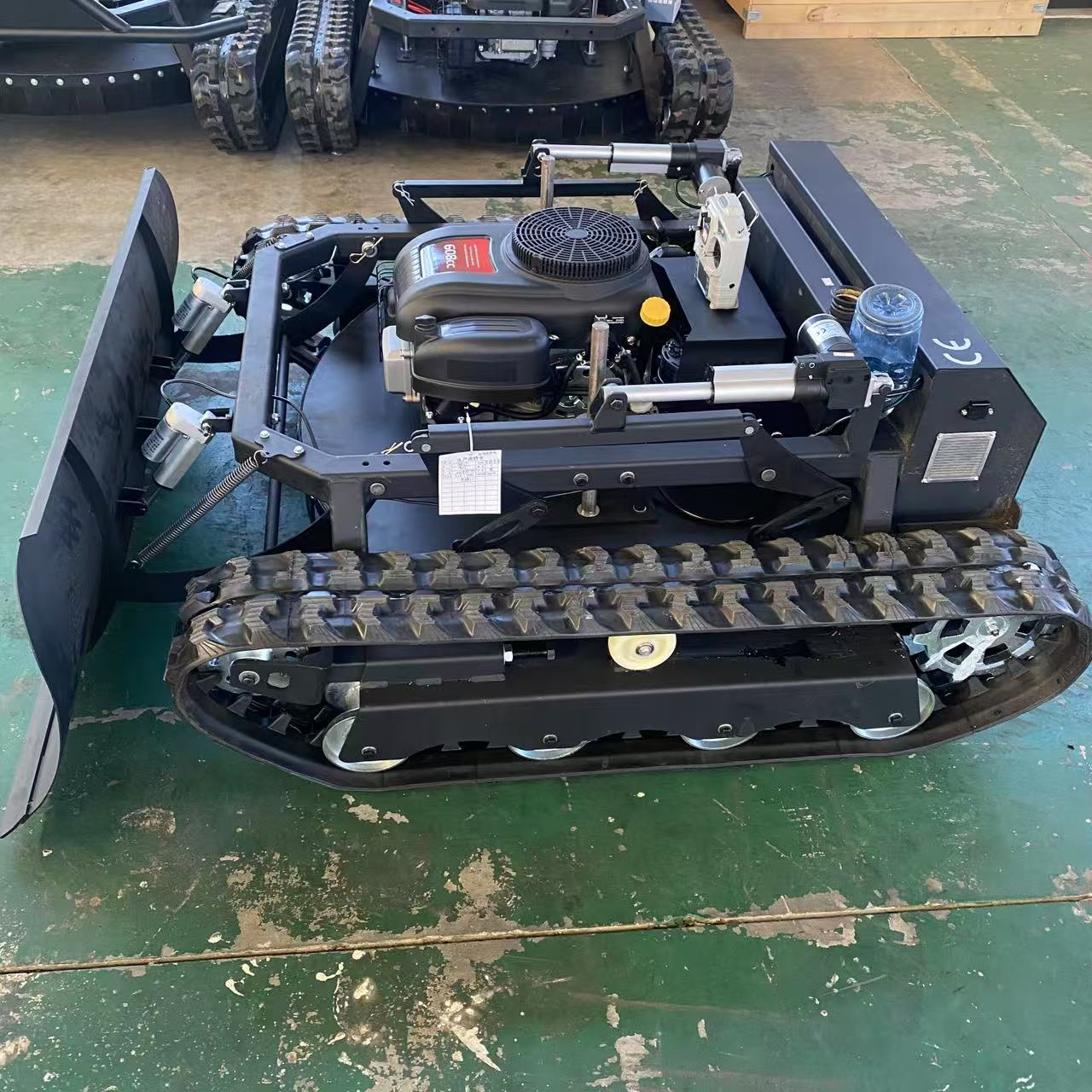

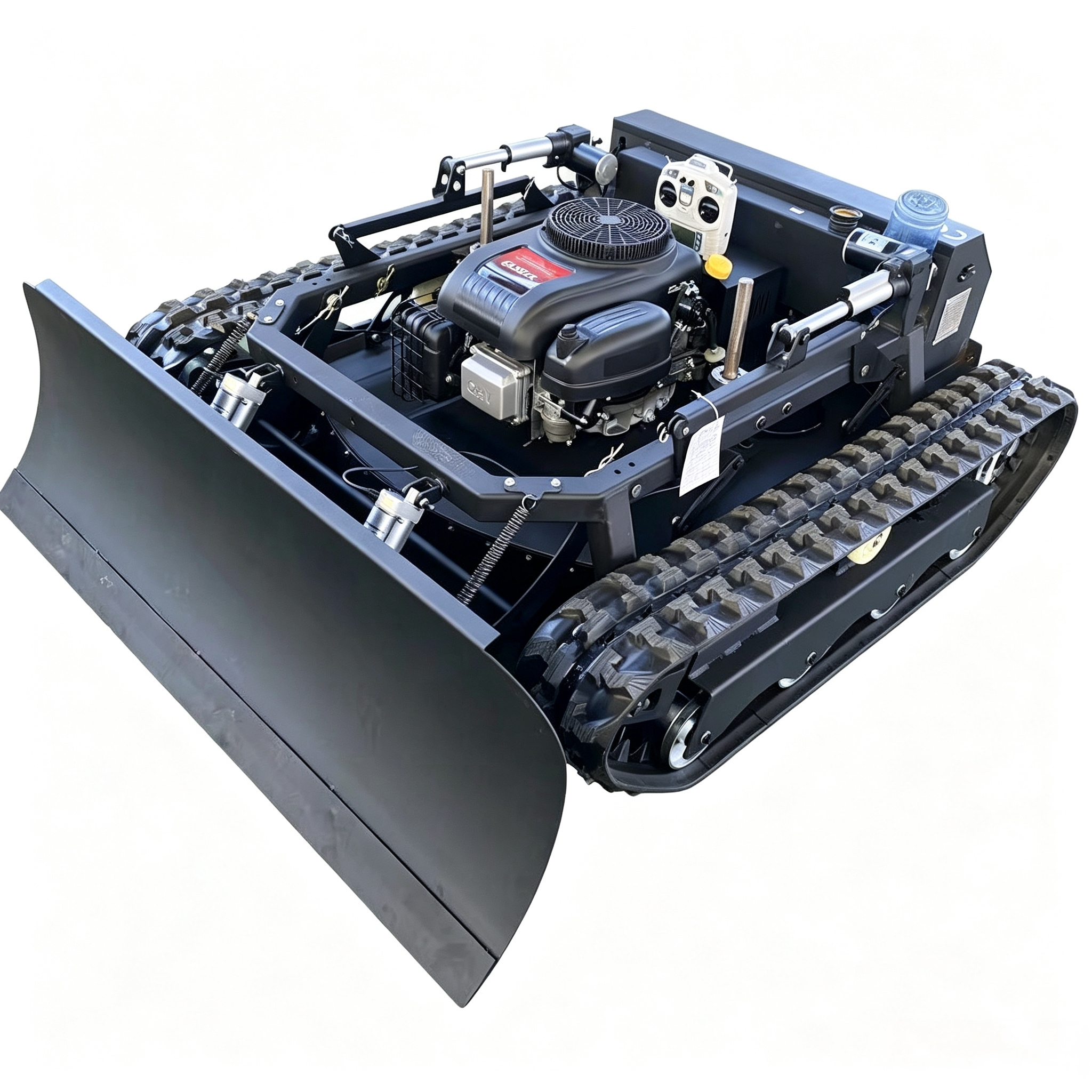

– Optional accessories: Snow plow, side-mounted flail mower, material grapple bucket
– Compact design: Easy to transport via pickup truck or small trailer
6. Application Scenarios
– Small model (50cm cutting width): Villa gardens, narrow orchard rows
– Medium model (80cm cutting width): Standard orchards, small sloped green belts
– Standard wide model (1m cutting width): Farm pastures, roadside greenery, river embankment slope trimming
– Extra-wide model (1.2m cutting width): Large municipal slope protection areas, highway embankments, large-scale pastures
